WIRE ROPE HOISTS

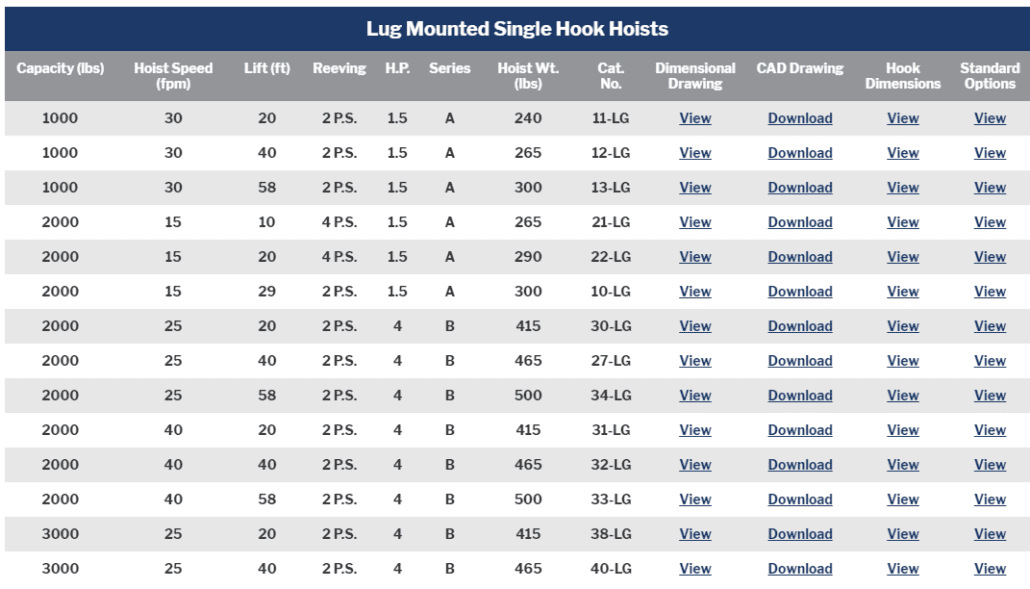

Lug Mounted Single Hook Hoists
- Used for fixed placement applications
- Can be bolted to a ceiling, or beam at any fixed point
- Standard capacities available up to 20,000 lbs.
- See catalog for available lift speeds
Electrolift lug mounted hoists can easily be adapted to use many manufacturer’s trolleys, such as:
- Cleveland Tramrail
- Louden
- TC American
- Trambeam
Idler Trolley Single Hook Hoists
-
- Ideal for low capacity applications where motorized horizontal movement is not required
- Standard capacities available up to 20,000 lbs
- See catalog for available lift speeds
- Engineered for use on S-beams, W-beams, or patented tracks
- Ideal for bridge cranes, monorail tracks, jib, gantry, or cantilever applications
- Can be used to negotiate monorails with curved tracks
- Optional trolley wheel material: Hardened Steel, Bronze, or Stainless steel
When a monorail system has a radius present and motorized horizontal movement is required, the Electrolift Plain Trolley hoist can be mated to a tractor drive
Motor Driven Trolley Single Hook Hoists
-
- Most popular single hook configuration
- Powered horizontal movement
- Ideal for monorails, bridge beams, gantry and jib cranes
- Standard capacities available up to 20,000 lbs.
- See catalog for available lift speeds
- Trolley speeds typically available: 14 fpm – 141 fpm
- Contact sales department for trolley speed ranges available for each specific capacity.
- Trolley brake available
- Optional trolley wheel material: Hardened Steel, Bronze, or Stainless steel
Base Mounted Single Hook Hoists
-
-
- Convenient installation with heavy steel base plate
- Stationary mounted installations
- Can be used in pulling applications
- Used with remote hook blocks and sheaves when the hoist can not be located directly above the load
- Generic, all-purpose utility hoist
- Capacities available up to 20,000 lbs.
- See catalog for available speeds
Vertically mounted hoist with remote sheave assemblies
- Versatile mounting configurations
- Horizontal or vertical mounting available
- Can be easily modified to have a channel frame
- True vertical lift available
- Various reeving configurations and lifts are available
-
Base Mounted Single Hook Hoists
Features:
-
-
- Hook stays centered below the middle of the drum
- No hook block drift
- Standard capacities available up to 20,000 lbs.
- Available in lug mounted, idler trolley, or motor-driven trolley configurations
- Optional trolley wheel material: Hardened Steel, Bronze, or Stainless steel
-
Base Mounted Single Hook Hoists
- Hoists configured for minimal headroom requirements
- Headroom is defined as the distance from the tread
of the track to the palm of the hook - Standard capacities available up to 15,000 lbs.
- Available as idler trolley or motor-driven trolley configurations
The following standard configurations are available:
- Capacity up to 6000 lbs., 14-7/16″ headroom
- Capacity up to 10,000 lbs., 24″ headroom
- Capacity up to 15,000 lbs., 24″ headroom
